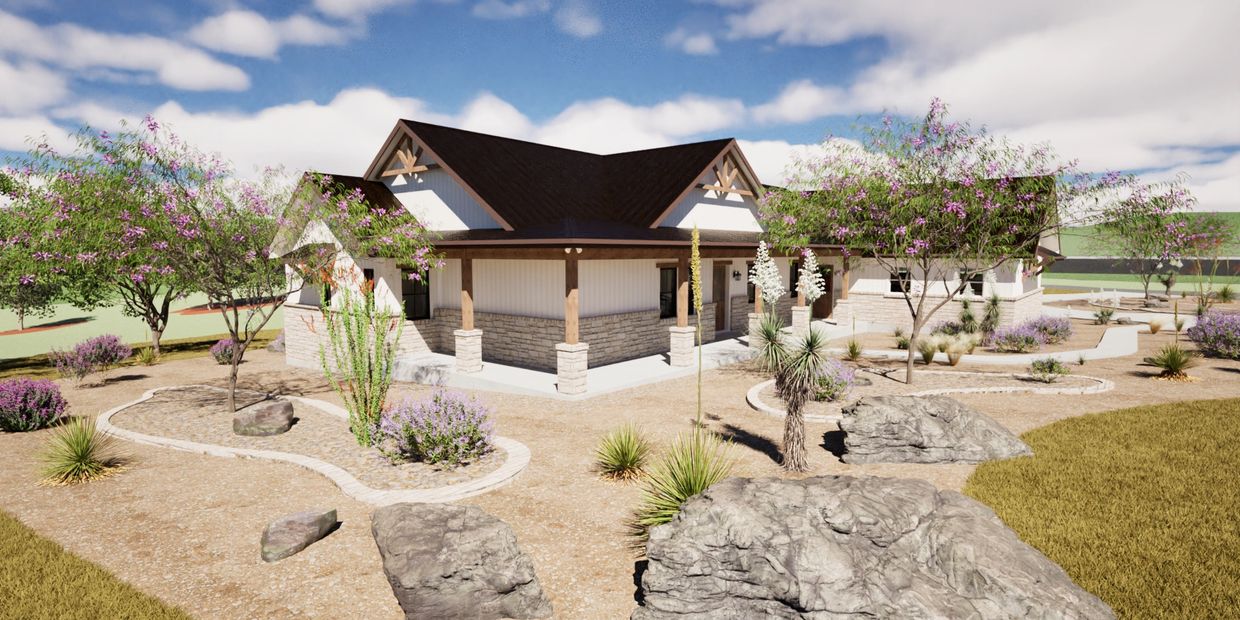

This Fair Oaks Ranch, TX, barndominium was designed to meet the minimum requirement of 1800 square feet of air-conditioned living space.  The deed restrictions for the lot also required stone to cover 50% of the home's exterior.  The main focus of this project was to create a large shop and garage area that was complimented by a grand open floor plan living room and kitchen area.  We also needed to find the perfect location for the building and layout the 650' driveway leading up to it.  Using LiDAR elevation data, aerial photos, and a site visit, we were able to locate the building, driveway centerline, and parking areas for the project. Here is a link to the 3D walk-through.

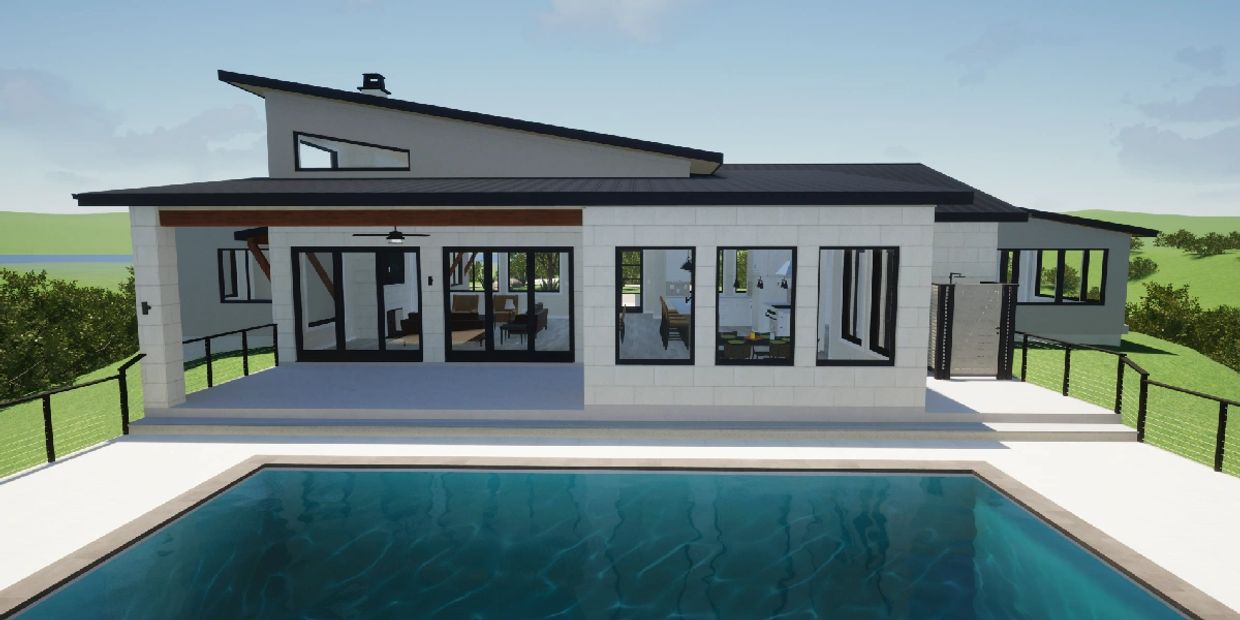

This contemporary home design will be constructed on a hilltop, providing a stunning 360-degree view of the valley below. The open floor plan we developed prioritizes the breathtaking scenery, and we worked closely with the homeowner to create this design. Our goal is to bring your vision to life, tailored to your specific needs and preferences. We invested numerous hours collaborating with the owner in real time to make adjustments and updates in both 2-D and 3-D renderings, and the results were well worth the effort.

 This was an exciting project.  We did as-built measurements to determine the possibilities for remodeling this horse barn while retaining the original steel structure.  The concept for this project was a communal space where people can bond, a place of peace and healing.  We expanded the air-conditioned space and added a second-story deck, two covered porches, a viewing deck, and a carport.  The rustic feel was the preferred style for this project.

J2Vision worked with us on this project to design their retirement home in Castroville, TX. We designed this house to be 2400 square feet and to fit on the lot inside the building setback requirements, which were tight for this lot. We used aerial photography, elevation data, surveyed lot lines, and setbacks to place the house. We could keep the large oak trees and meet the setback requirements by 6 feet! The open-concept living room and kitchen feature a grand vaulted ceiling and large kitchen island. This house was completed in late 2023.  Here is a link to the walk-through video.

We used a BLK360 LiDAR scanner for this project to take as-built measurements for the 1150-square-foot house.  Once the original house was created, we added an additional 1581 square feet to this house.  We also added the back porches and pool design.  They have a fun, open-concept remodel plan ready for the ultimate pool party.

This project started with the pool just being completed but needing a pool cabana, stone fence, and landscaping plan.  We conducted as-built measurements, interviewed the clients to determine which direction to take, and created an excellent concept for them.  The project was completed in 2023 by Coastal Breeze Pools. Here is the walk-through video link.

This Corpus Christi backyard remodel was a challenge. The existing pool, deck, and deck bar were to remain and were at off angles to the porch and fence; the challenge was to create symmetry from a non-symmetrical layout. After creating the existing house and backyard as-built using Pictometry aerial photography, video from the customer, and LiDAR elevation data, we began to design the pool deck. The main requests for this project were a pool cabana, fire pit, a pergola, and enhancement of the lighting ambiance. Shown here is the evening view, but the video shows the entire project, click here.
